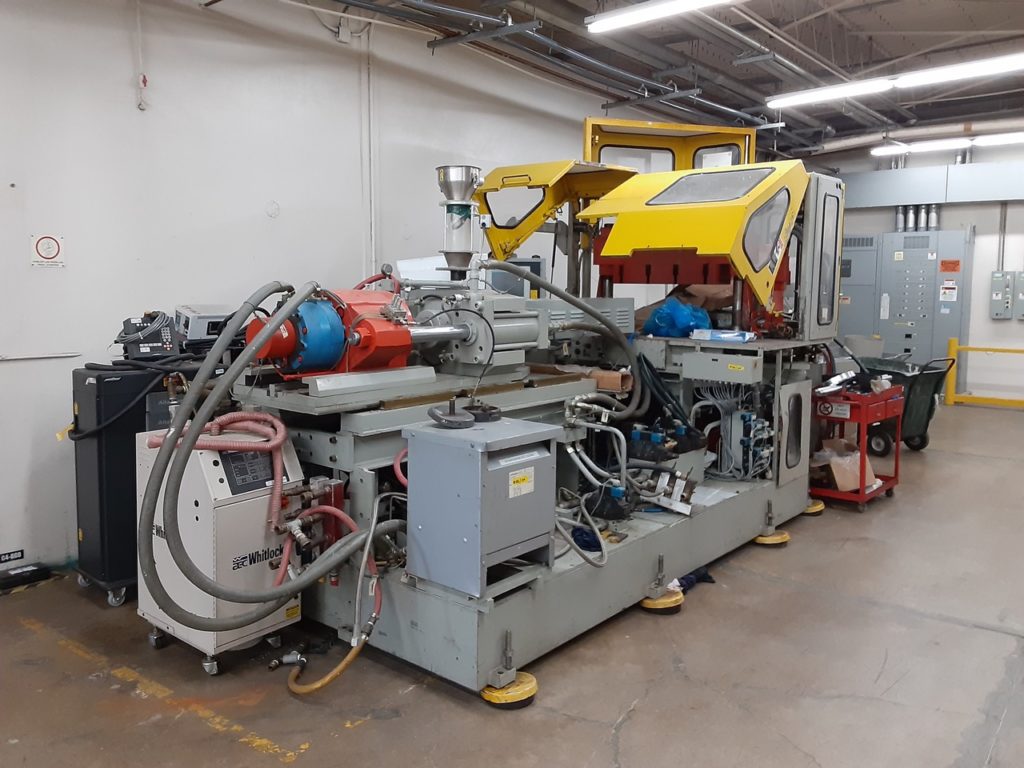

Uniloy Model 122-3 Injection Blow Molding Machine
- Year of manufacture 2000
- Clamp force total 122 tons
- Clamp force blow side 19 tons
- Clamp force injection side 103 tons
- Maximum die set width 38in
- Maximum stack height 22 in
- Maximum daylight 15in
- Trigger bar length (maximum useable) 34in
- Swing radius 27.75in
- Screw diameter 2.5in
- Extruder L/D ratio 25 to 1
- Hydraulic pump motor size 100hp
- Air Cooled Barrel
- Electrical specifications 460 volts 3 phase 60 cycles
- Machine dimensions(inches) 192.5 length x 91 wide x 116 tall (including hopper)
- Machine weight approximately 30,000 pounds
- Controls Siemens Model Simatic 505 PLC
- Condition good
