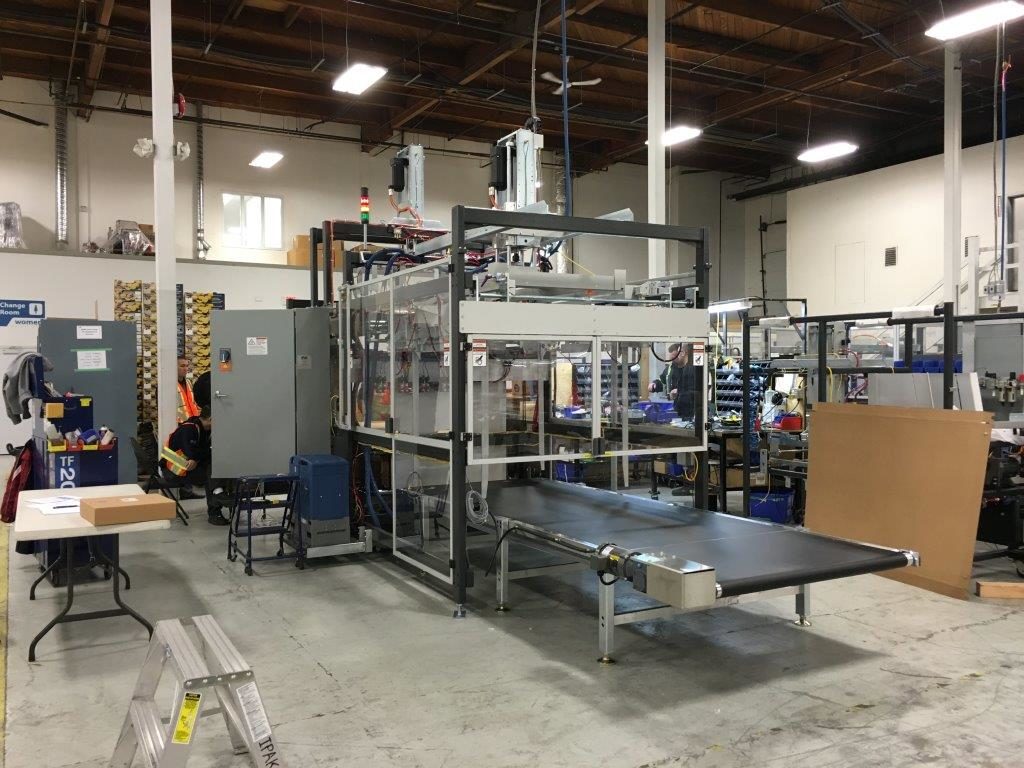

2015 IPAK/Wexxar Automatic Model TF-200XLQ-TP Tray Former
2015 IPAK/Wexxar Automatic Model TF-200XLQ-TP Tray Former
– Machine set up to automatically form a pallet tray- 2 corners are glued so that 3-sides are in the upright position, one side is not glued to facilitate the placement of empty containers in the tray
– Speed- up to 10 trays per minute
– Set up to run a pallet tray
– Inside dimensions of tray that machine is currently set up to form- 56 3/4” long x 44 1/4” wide x 3” high
– Change over time- approximately 20 minutes
– Includes a Nordson Model ProBlue 15 Hot Melt Adhesive System
– Machine dimensions-176 long” x 102” wide x 140” high
– Maximum/Minimum tray sizes- Maximum- 56 1/4” length x 45” width- Minimum- 30” length x 35” width
– Includes a “Top Pick” blank loading system which allows for a blank magazine containing a greater number of blanks resulting in less downtime- also facilitates handling of large size blanks
