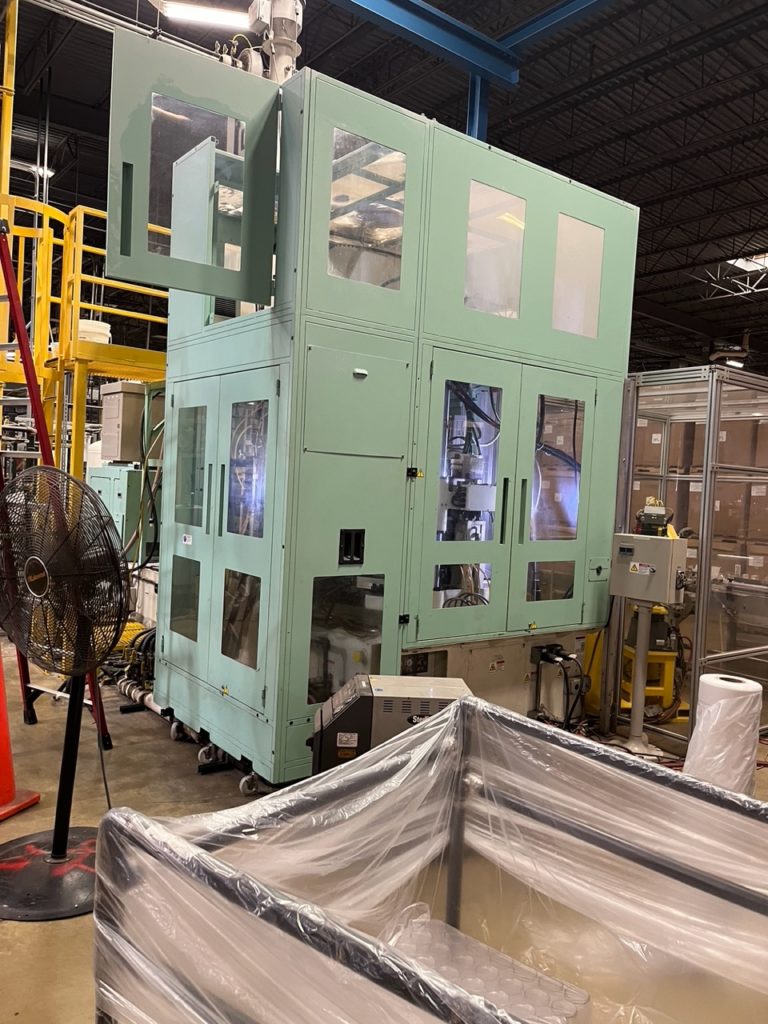

Aoki Model SBIII-350LL-100 Injection Stretch Blow Molding Machine
-Year of manufacture- 2 available- 2013 and 2010
-Screw diameter- 68mm
-Injection capacity- 510.3 cubic centimeters per shot
-Injection mold clamp force- 983.4 kN
-Blow mold clamp force- 388.2 kN
-Machine dimensions (meters)- 5.25 L x 2.55 width x 3.50 height
-Approximate machine weight- 14000 kg
-Electrical specifications- 460 volts 3 phase 60 hertz
Offer includes the following items:
Resin dryer
Resin hopper
Gardner Denver Low Pressure Air Compressor with Air Dryer and Air Reservoir- variable speed
Hycomp high pressure air compressor with Air Dryer and Air Reservoir
Fanuc Part- Take Out System
Frigel Water Cooled Chiller
