FEATURED PRODUCTS

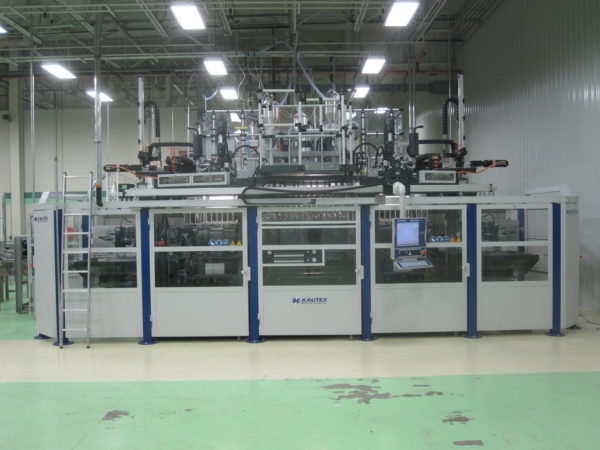

Kautex Model KLS 14-100D Co-Ex Continuous Extrusion Blow Molding Machine
– Year of manufacture- 2010
– Machine was built in Germany
– Head configurations- (2) Willie Mueller heads included in offer: Head #1– (12) parison head with 115 mm distance between die centers- Head #2– (15) parison head with 95 mm distance between die centers (both can make a 3 layer bottle)
– Press arrangement- dual sided
– In machine trimming capability
– Machine is equipped with (3) extruders and a head that can produce a (3) layer bottle
– Clamp width- 1470 mm
– Clamp height- 375 mm
– Closing stroke- 2 x 180 mm
– Opening gap- maximum– 2 x 360 mm
– Closing force- 40.8 metric tons
– Mold width- maximum- 1470 mm
– Mold height- maximum- 425 mm
– Mold thickness- minimum- 2 x 180 mm
– Machine dimensions- 9600 mm length x 8800 mm width (without cabinet) x 4400 mm height
– Cabinet width- 3600 mm
– Power specifications- 460 volts- 3 phase- 60 cycles
– Condition- Used- can be inspected in storage

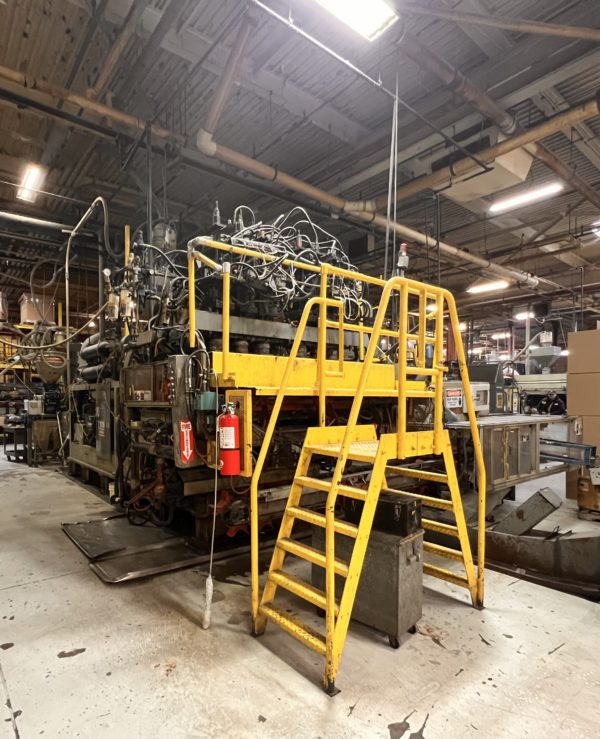

Uniloy Model 400 R20 Reciprocating Screw Blow Molding Machine
– Serial number – 4668
– Nominal shot size- 2000 grams
– Screw diameter- 4″
– Extruder is air cooled
– Clamp dimensions- 72″ x 15″ (36″ x 15″ double)
– Machine is equipment with side shift capability so the machine can produce an off set center neck finish such as a “F” style bottle
– Head configuration- (6) parsons head with 10 1/8″ distances between head centers
– Heads are programmable
– Equipped with AC variable frequency drive
Machine has been upgraded as follows
NEW MACOsys PLC ($90,000 upgraded in March 2026.)
Offer includes the following:
– Uniloy Model 10041 Impact Trimming Machine
– Scrap blower, Scrap Duct
– Dyco Semi Automatic Bagging Machine
– Condition: Used- machine is still installed
